M110

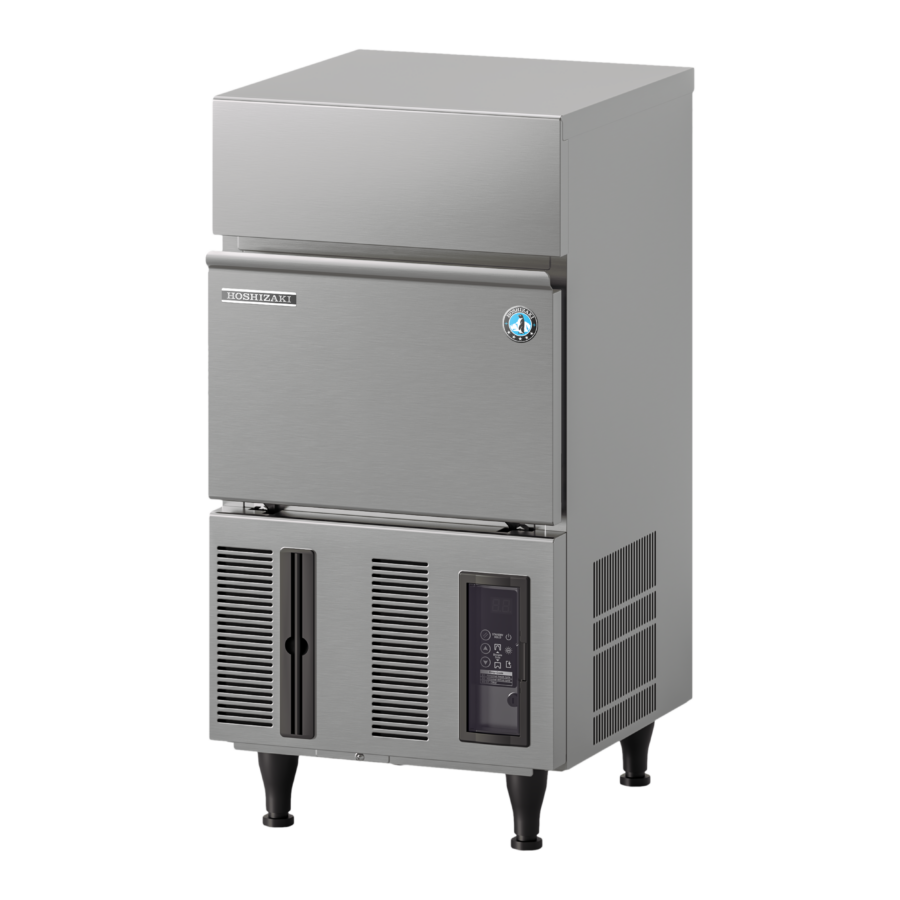

IM-30CPE Cuber, Self Contained
This Hoshizaki IM-30CPE is the new standard IM CUBE variant of a Cuber, Self Contained producing up to 34 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are mm without legs.
SET YOURSELF UP FOR GROWTH AND SUCCESS.
The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.
Key Features
INCREASED HYGIENE & FOOD SAFETY
- NEW: Scoop Holder-Kit (optional)
- Το κλειστό κύκλωμα νερού παρέχει μέγιστη προστασία από κάθε είδους μόλυνση καθ' όλη τη διάρκεια της διαδικασίας κοπής σε κύβους.
INCREASED PERFORMANCE
- NEW: More efficient magnetic DC Pump Motor with variable speed
- Use of R290 natural refrigerant
INCREASED ICE QUALITY
- NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
- Closed Cell System, individual cube forming
INCREASED DURABILITY
- NEW: Automated Cleaning
- NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
- NEW: Magnetic DC Pump Motor with variable speed
- Highest-grade insulation material (foaming instead of polystyrene)
ΑΝΕΣΗ ΧΕΙΡΙΣΤΗ/ΣΥΝΤΗΡΗΣΗΣ
- NEW: Water circuit cleaning notification
- NEW: Condenser cleaning notification
- NEW: Control panel for easy adjustable dimple size
- NEW: Water tank & DC pump are easily removable
INCREASED ENERGY SAVING
- NEW: DC Pump Motor with variable speed
- NEW: Stand-by function
- Highest-grade insulation material (foaming instead of polystyrene)
- Use of R290 natural refrigerant
INCREASED WATER SAVING
- NEW: Magnetic DC Pump Motor with variable speed
- NEW: Improved water tank design to consume less water
Specifications
| Specification | Value |
|---|---|
| Item number | M110 |
| Model name | IM-30CPE Extended spec sheets approved 1 Ice maker type Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | UK Sub series IM Cube |
| Title | Cuber, Self Contained |
| Accessories included | Installation kit, Legs, Scoop |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 398 mm |
| Width (packed) | 505 mm |
| Depth | 451 mm |
| Depth (packed) | 575 mm |
| Height | 695 mm |
| Height (packed) | 862 mm Volume (packed) 0.2503 m³ Dimensions legs For legs add 92-127mm |
| Electric Consumption | 0.215 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C Functions Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 41 kg |
| Net weight | 36 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 0.57 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 11.5 kg |
| Cooling system | Air Cooled |
| Ice type | Large cubes, Standard Ice production 34 |
| Water consumption | Air cooled ice makers 0.15 |
| Optional Extras | 4HC-H water filtration, UV-C sanitization kit |
| CO2 equivalent | 0.195 kg GWP 3 GWP |
| Refrigerant | 0.065 kg |
| Refrigerant type | R290 |
| SKU | M110 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
