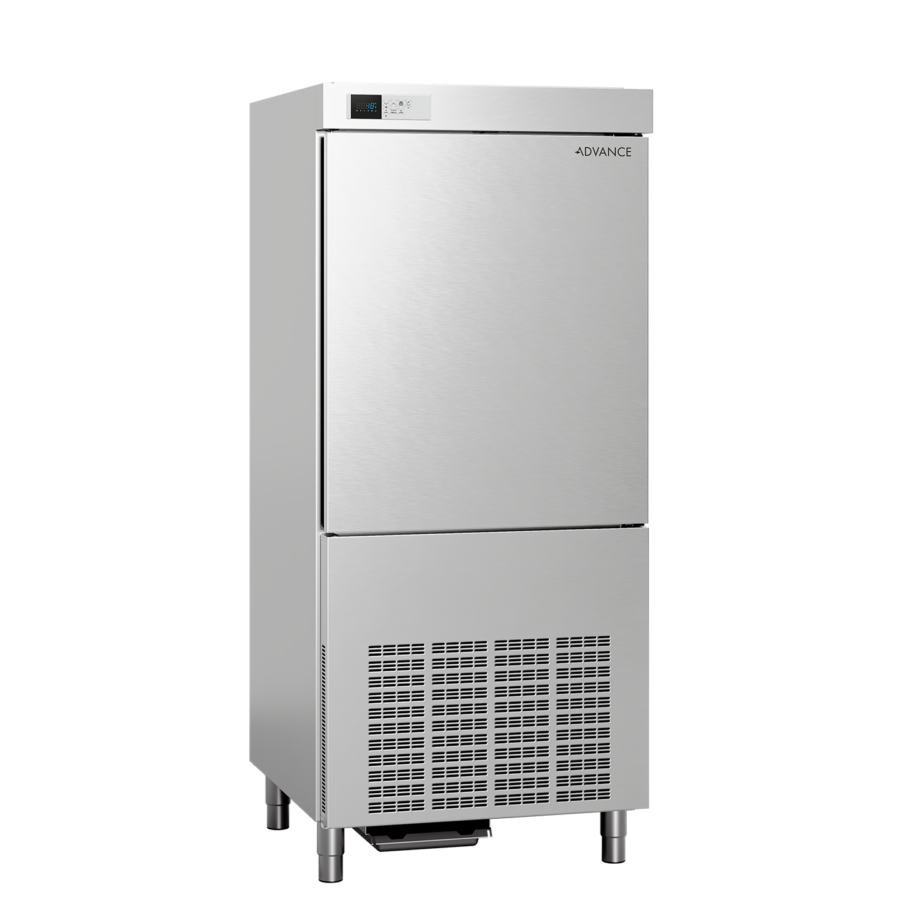

ADVANCE SBU40GT (230 V) Blast Chiller/Freezer
The Hoshizaki ADVANCE SBU40GT (230 V) is a robust Blast Chiller/Freezer built for consistent performance in high-demand environments. Designed for fast-paced workflows, the ADVANCE SBU40GT (230 V) is a Blast Chiller/Freezer (Climate Class [5]), measuring 800 x 930 x 1814.5-1864.5 mm and fitting up to 10 pans.
Key Features
FOOD SAFETY WITH AUTOMATIC OPERATION
The chilling cycle starts automatically when food is loaded, then switches to storage mode once complete. Audio-visual alarms provide instant alerts for power loss or temperature deviations. A built-in drip tray and automatic defrost ensure safe, clean operation at all times.
CONSISTENT RESULTS & PRECISE TEMPERATURE CONTROL
Delivers chilling capacity (from +70°C to +3°C in 90min) of 45 kg and freezing capacity (from +70°C to -18°C in 4 hours) of 28 kg. Hard and Soft Chill modes suit different food types, from delicate to dense. A single-point probe ensures accurate core temperature monitoring.
SIMPLE INTERFACE & DATA ACCESS
The digital control panel with segment display offers quick navigation. A built-in USB port enables fast export of temperature logs for compliance and analysis.
EASY CLEANING & HYGIENIC DESIGN
Durable stainless steel surfaces, rounded internal corners, and removable shelf supports and door gaskets allow for fast, thorough cleaning. Internal fan and evaporator components are accessible for full maintenance. The integrated condensate tray supports clean and food safe operation.
List of Features:
- Digital control panel with segment display for simple and fast navigation
- Single-point probe for precise core temperature control
- USB port for download of cooling log data
- HACCP alarms. If a power failure occurs or when a temperature limit is exceeded this will activate an audio-visual alarm
- Climate class 5 cooling system enduring up to +40°C ambient temperature
- Easy maintenance with access to condenser without use of tools
- Removable wire rack for 1/1 GN and/or EN 600 x 400mm
- The internal fan section can be opened for cleaning around and behind the unit
- Defrost drip tray position under the cabinet
- Right hand hinged door
- Reversible door
- Removable magnetic door gasket
Specifications
| Specification | Value |
|---|---|
| Item number | 975780541 |
| Model name | ADVANCE SBU40GT (230 V) Extended spec sheets approved 1 |
| Brand | Hoshizaki |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | Italy |
| Title | Blast Chiller/Freezer |
| Accessories included | N/A Equipped with Single-point probe, removable wire rack for 1/1 GN and 40 x 60 cm, reversible door |
| Width | 800 mm |
| Width (packed) | 880 mm |
| Width | inside 645 mm |
| Depth | 930 mm |
| Depth (packed) | 990 mm |
| Depth | inside 702 mm |
| Height | 1709.5 mm |
| Height including legs (minimum) | 1814.5 mm |
| Height including legs (maximum) | 1864.5 mm |
| Height (packed) | 2054 mm |
| Height | inside 780 mm Volume (packed) 1.7894 m³ Distance between guide positions, GN/EN 530/600 Maximum depth of gastro pans, GN/EN 325/400 |
| Height | from base to first guide 61 mm |
| Height | from ceiling to top guide 745 mm Energy consumption - Chilling (kWh/kg) 0.08 kWh/kg Energy Consumption - Freezing (kWh/kg) 0.28 kWh/kg Maximum number of trays 10 GN tray size 1/1 GN / 400 x 600 mm EN |
| Climate class | 5 (max. ambient 40°C w/ 40% RH) |
| Exterior | Stainless steel AISI 304 Interior Stainless steel AISI 304 |
| Gross weight | 200 kg Insulation type Cyclopentane |
| Net weight | 175 kg |
| Power supply | 230V, 50Hz Sound level 64 dB |
| Temperature range | 40/+10°C |
| Cooling system | Built-in cooling system |
| Chilling capacity | 45 Freezing capacity 28 Refrigeration capacity 1900 |
| Optional Extras | N/A |
| CO2 equivalent | 0.9 kg GWP 3 GWP |
| Refrigerant | 0.3 kg |
| Refrigerant type | R290 |
| SKU | 975780541 |
