M116-D001

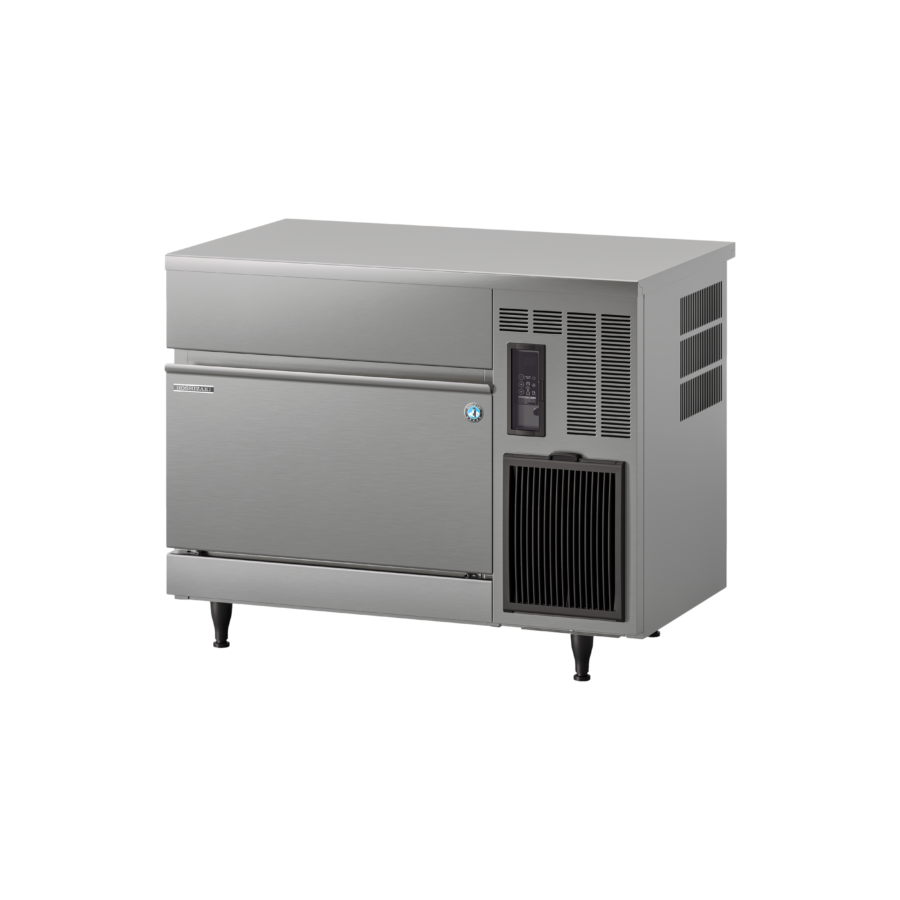

IM-130CPE-23 Cuber, Self Contained
This Hoshizaki IM-130CPE-23 is the new standard IM CUBE variant of a Cuber, Self Contained producing up to 103 kg of the world-famous Hoshizaki ice cubes (Medium cubes – 23) per 24 hours. The dimensions of this model are mm without legs.
SET YOURSELF UP FOR GROWTH AND SUCCESS.
The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.
Key Features
INCREASED HYGIENE & FOOD SAFETY
- NEW: Scoop Holder-Kit (optional)
- The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.
INCREASED PERFORMANCE
- NEW: More efficient magnetic DC Pump Motor with variable speed
- Use of R290 natural refrigerant
INCREASED ICE QUALITY
- NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
- Closed Cell System, individual cube forming
INCREASED DURABILITY
- NEW: Automated Cleaning
- NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
- NEW: Magnetic DC Pump Motor with variable speed
- Highest-grade insulation material (foaming instead of polystyrene)
OPERATOR/MAINTENANCE CONVENIENCE
- NEW: Water circuit cleaning notification
- NEW: Condenser cleaning notification
- NEW: Control panel for easy adjustable dimple size
- NEW: Water tank & DC pump are easily removable
INCREASED ENERGY SAVING
- NEW: DC Pump Motor with variable speed
- NEW: Stand-by function
- Highest-grade insulation material (foaming instead of polystyrene)
- Use of R290 natural refrigerant
INCREASED WATER SAVING
- NEW: Magnetic DC Pump Motor with variable speed
- NEW: Improved water tank design to consume less water
Specifications
| Specification | Value |
|---|---|
| Item number | M116-D001 |
| Model name | IM-130CPE-23 Ice maker type Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | UK Sub series IM Cube |
| Title | Cuber, Self Contained |
| Accessories included | Installation kit, Scoop Please observe This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 1004 mm |
| Width (packed) | 1110 mm |
| Depth | 600 mm |
| Depth (packed) | 700 mm |
| Height | 700 mm |
| Height (packed) | 875 mm Volume (packed) 0.6799 m³ Dimensions legs for legs add 100mm |
| Electric Consumption | 0.585 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C Functions Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 91 kg |
| Net weight | 80 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 1.45 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 38 kg |
| Cooling system | Air Cooled |

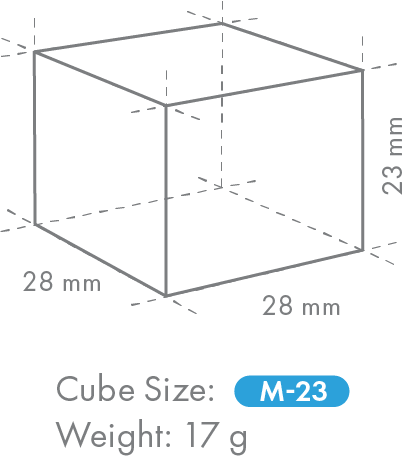

| Ice type | Medium cubes - 23 Ice production 103 |
| Water consumption | Air cooled ice makers 0.54 |
| Optional Extras | 4HC-H water filtration, UV-C sanitization kit |
| CO2 equivalent | 0.375 kg GWP 3 GWP |
| Refrigerant | 0.125 kg |
| Refrigerant type | R290 |
| SKU | M116-D001 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
