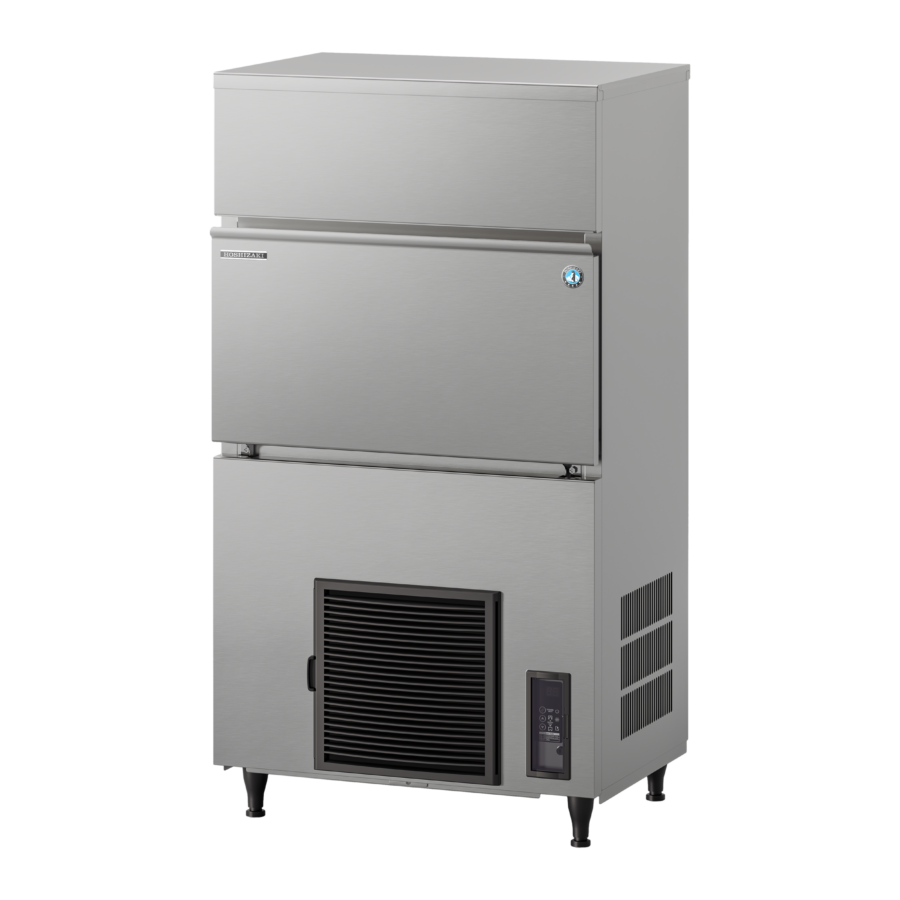

IM-130PE-F-32 Cuber, Self Contained
This Hoshizaki IM-130PE-F-32 is a FlexiCUBE variant of a Cuber, Self Contained producing up to 108 kg of the world-famous Hoshizaki ice cubes (Extra large cubes – 32) per 24 hours. The dimensions of this model are mm without legs.
BYPASSING SPACE RESTRICTIONS WITH FEATURES FOR INCREASED FLEXIBILITY.
FlexiCUBE models offer all the features of the IM CUBE model, along with specialized enhancements that make it easier for owners and designers to place the ice maker within any space. In food service locations (especially in high-value real estate) space is often limited, and traditional ice makers can be restricted by their height or drain location. FlexiCUBE models include an integrated drain pump, enabling flexible placement of the ice maker, regardless of drain position or height. Thanks to this, project owners can rearrange existing kitchen and bar setups, within a distance of 10 meters and a height of 1.5 meters.
Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.
Key Features
INCREASED HYGIENE & FOOD SAFETY
- NEW: Scoop Holder-Kit (optional)
- The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.
INCREASED PERFORMANCE
- NEW: More efficient magnetic DC Pump Motor with variable speed
- Use of R290 natural refrigerant
INCREASED ICE QUALITY
- NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
- Closed Cell System, individual cube forming
INCREASED DURABILITY
- NEW: Automated Cleaning
- NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
- NEW: Magnetic DC Pump Motor with variable speed
- Highest-grade insulation material (foaming instead of polystyrene)
OPERATOR/MAINTENANCE CONVENIENCE
- NEW: Water circuit cleaning notification
- NEW: Condenser cleaning notification
- NEW: Control panel for easy adjustable dimple size
- NEW: Water tank & DC pump are easily removable
INCREASED ENERGY SAVING
- NEW: DC Pump Motor with variable speed
- NEW: Stand-by function
- Highest-grade insulation material (foaming instead of polystyrene)
- Use of R290 natural refrigerant
INCREASED FLEXIBILITY
Internal Drain Pump allows for a positioning radius of 10 m distance, 1.5 m height.
INCREASED WATER SAVING
- NEW: Magnetic DC Pump Motor with with variable speed
- NEW: Improved water tank design to consume less water
Specifications
| Specification | Value |
|---|---|
| Item number | M115-D103 |
| Model name | IM-130PE-F-32 Ice maker type Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | UK Sub series IM FlexiCUBE |
| Title | Cuber, Self Contained |
| Accessories included | Installation kit, Legs, Scoop Please observe This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 704 mm |
| Width (packed) | 805 mm |
| Depth | 506 mm |
| Depth (packed) | 580 mm |
| Height | 1210 mm |
| Height (packed) | 1375 mm Volume (packed) 0.642 m³ Dimensions legs for legs add 70-110mm |
| Electric Consumption | 0.615 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C Functions Automated cleaning, Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 85 kg |
| Net weight | 73 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 1.45 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 50 kg |
| Cooling system | Air Cooled |
| Ice type | Extra large cubes - 32 Ice production 108 |
| Water consumption | Air cooled ice makers 0.4 |
| Optional Extras | 4HC-H water filtration, UV-C sanitization kit |
| CO2 equivalent | 0.42 kg GWP 3 GWP |
| Refrigerant | 0.14 kg |
| Refrigerant type | R290 |
| SKU | M115-D103 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
