M066-D011

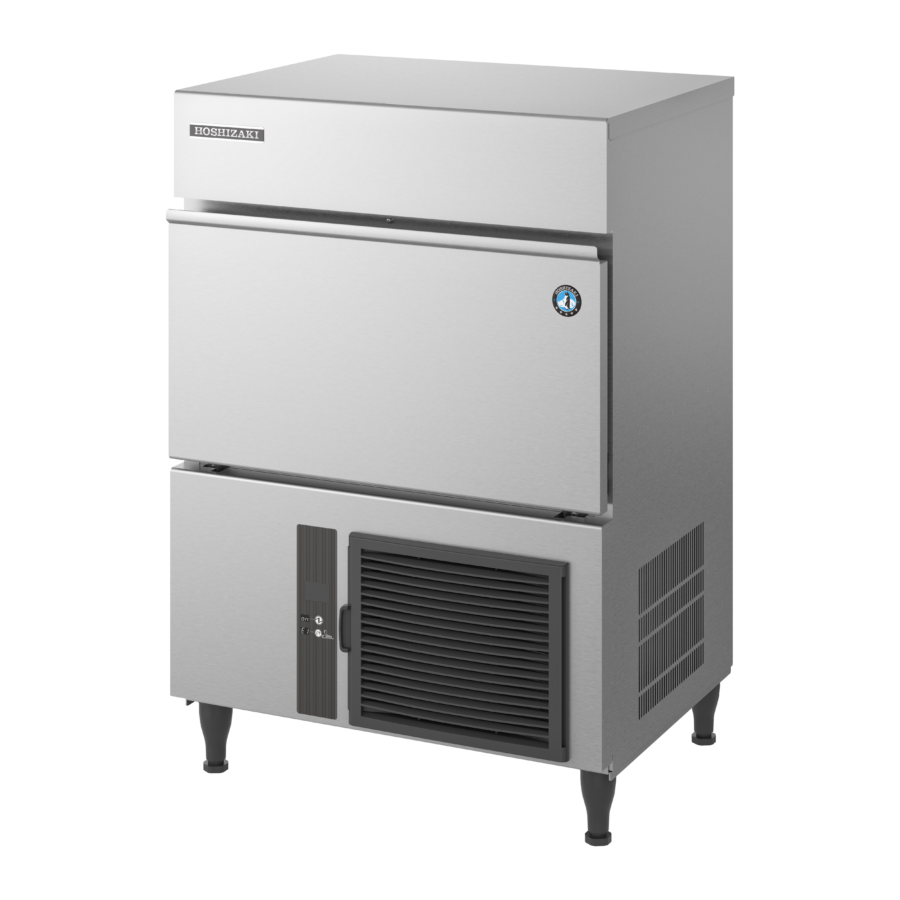

IM-65NE-HC-C Cylinder Ice Maker, Self Contained
This Hoshizaki IM-65NE-HC-C is a self-contained special ice maker producing up to 56 kg of high-quality Cylinder Ice per 24 hours.
Expand your creative horizon and your craft’s aesthetic possibilities with the help of our special ice makers that produce different, extraordinary shapes of ice – Specially tailored for cocktail bars that like to differentiate themselves from others, whilst never compromising on the taste and quality of their drinks. With perfect ice characteristics still in focus, you can now add a decorative highlight to your cocktails and long drinks.
All special ice makers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Special Ice Makers produce generous amounts of ice cubes, at a consistently high quality.
Key Features
Sustainable
The IM-65NE-HC-C uses refrigerant R290.
This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.
Material
The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.
Unique Technology
A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process. Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.
Smart Design
Like all Hoshizaki Ice makers, the IM-65NE-HC-C is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.
Perfect Fit
With outside dimensions W x D x H of 633 x 506 x 840 mm, the IM-65NE-HC-C is compact and is a perfect fit for small spaces.
Plug&Play
The smart plug-and-play design guarantees an easy and quick set-up.
Specifications
| Specification | Value |
|---|---|
| Item number | M066-D011 |
| Model name | IM-65NE-HC-C Ice maker type Cylinder ice maker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 2 Years on Parts & Labour - based on country agreement |
| Country of origin | UK |
| Title | Cylinder Ice Maker, Self Contained |
| Accessories included | Installation kit, Legs, Scoop Please observe This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 633 mm |
| Width (packed) | 735 mm |
| Depth | 506 mm |
| Depth (packed) | 570 mm |
| Height | 840 mm |
| Height (packed) | 1012 mm Volume (packed) 0.424 m³ Dimensions legs for legs add 90-125 mm |
| Electric Consumption | 0.32 kW Energy consumption 0.32 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0,07MPa (0,7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 61 kg |
| Net weight | 51 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 0.815 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 26 kg Volume, gross 0.424 l |
| Cooling system | Air Cooled |

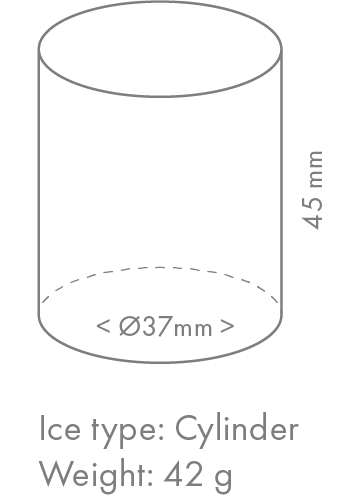

| Ice type | Cylinder Ice production 56 |
| Water consumption | Air cooled ice makers 0.35 |
| Optional Extras | 4HC-H water filtration, external drain pump |
| CO2 equivalent | 0.315 kg GWP 3 GWP |
| Refrigerant | 0.105 kg |
| Refrigerant type | R290 |
| SKU | M066-D011 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
| External drain pump S | 32904 |
