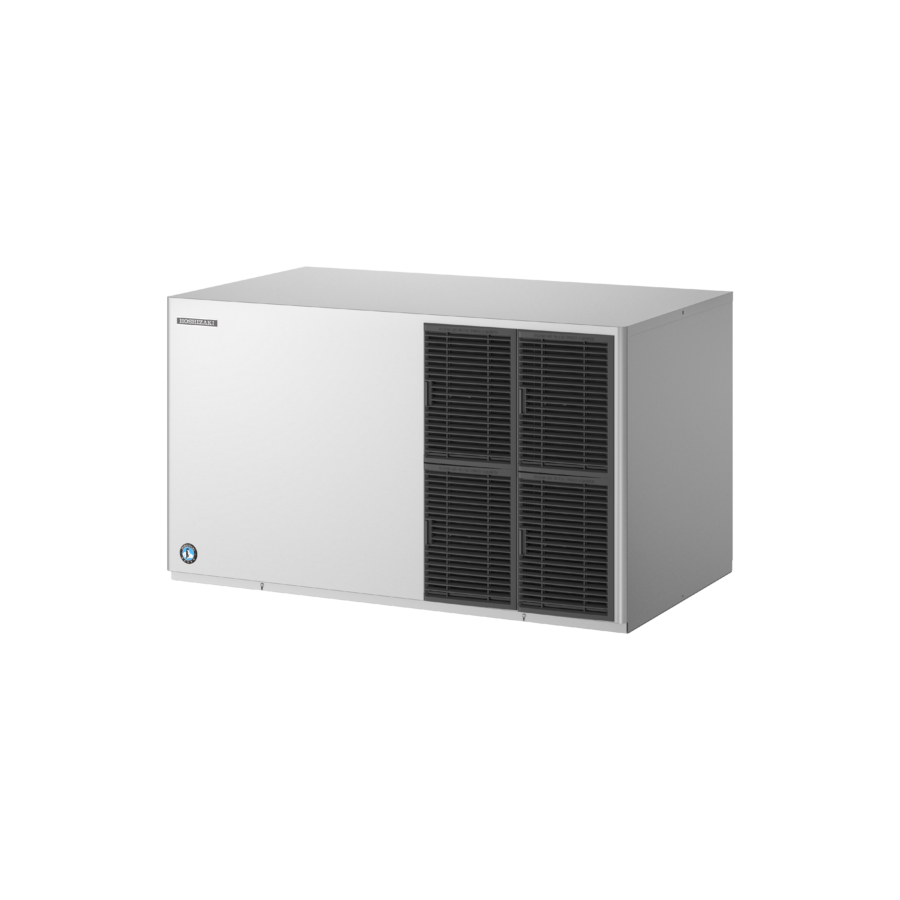

KM-590DJE-R452 Crescent Ice Maker, Modular
This Hoshizaki KM-590DJE-R452 is a modular Crescent Edge ice maker producing up to 630 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.
Key Features
The KM-590DJE-R452 uses refrigerant R452A.
Unique Technology
The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.
Convenience
Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “
Smart Design
Like all Hoshizaki ice makers, the KM-590DJE-R452 is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.
Flexibility
Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the KM-590DJE-R452 are mm.
Plug&Play
The smart plug-and-play design guarantees an easy and quick set-up.
Specifications
| Specification | Value |
|---|---|
| Item number | M096 |
| Model name | KM-590DJE-R452 Extended spec sheets approved 1 Ice maker type Crescent ice maker |
| Brand | Hoshizaki |
| Product configuration | Modular |
| Warranty period | 2 Years on Parts & Labour - based on country agreement |
| Country of origin | UK |
| Title | Crescent Ice Maker, Modular |
| Corresponding water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 1219 mm |
| Width (packed) | 1324 mm |
| Depth | 695 mm |
| Depth (packed) | 796 mm |
| Height | 695 mm |
| Height (packed) | 880 mm Volume (packed) 0.927 m³ |
| Electric Consumption | 2.08 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage | range (Rated |
| Voltage | ) 198-254V |
| Water supply pressure (maximum) | 0.78MPa (7.8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Electrical circuit breaker protection | 10 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 151 kg |
| Net weight | 136 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 4.72 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge Ice production 630 |
| Water consumption | Air cooled ice makers 2.41 |
| Optional Extras | 4HC-H water filtration Corresponding Bin(s) B-340SB |
| CO2 equivalent | 4066 kg GWP 2140 GWP |
| Refrigerant | 1.9 kg |
| Refrigerant type | R452A Corresponding top kits TK-48 for B-340SB (optional, not required) |
| SKU | M096 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Twin | 9320-52 |
| 4 HC Replacement Cartridge | 9655-11 |
