213030012100

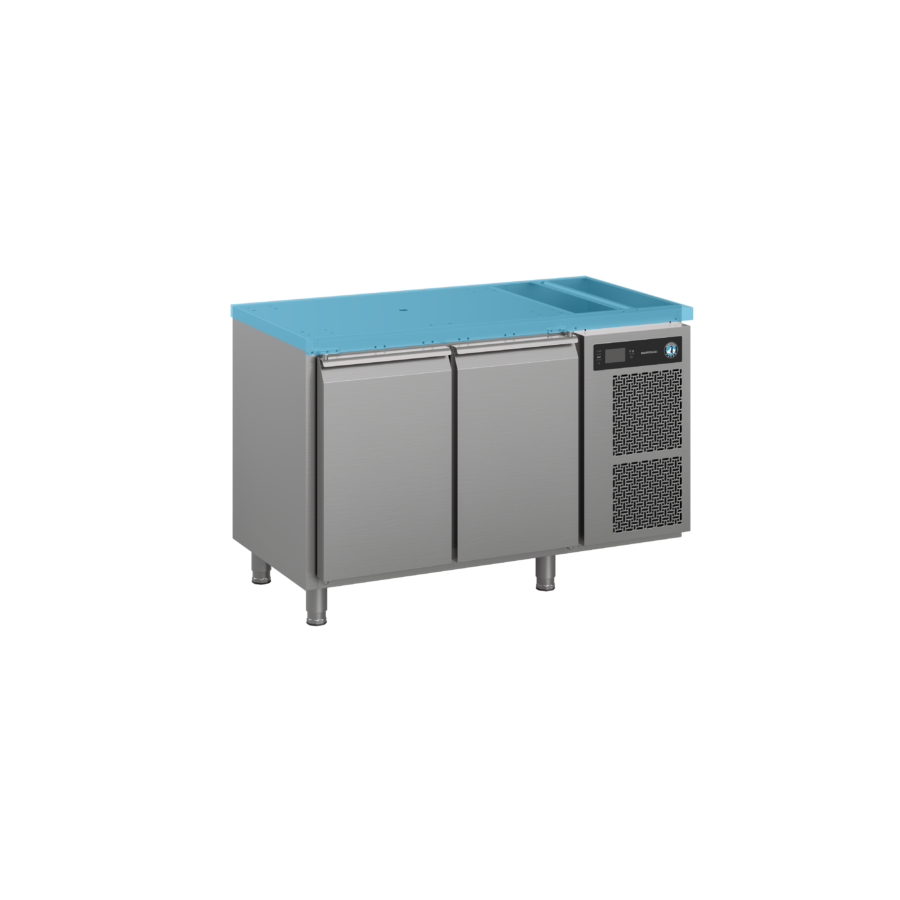

Premier F 2 B DL DR L E 2-Section Freezer Counter
The Premier F 2 B DL DR L E is a 2-Section Freezer Counter with a net internal volume of 192 l.
This 1/1 GN workstation has outside dimensions W x D x H of 750 x 680 x 880 – 930 mm.
Hoshizaki PREMIER is a series of heavy-duty cabinets and counters for energy-efficient refrigeration (Climate Class 4/5), catering to the needs of busy commercial kitchens. The durable design with solid door hinges, stainless steel, and a flawless finish is built to withstand the most demanding kitchen operations.
Key Features
PREMIER counters and cabinets are designed to recover the inside temperature rapidly after each door opening and defrosting.
SEAMLESS KITCHEN DESIGN
Thanks to the smart front venting design, no air flow is required to the underneath, sides, or back of the unit. This allows seamless integration into your kitchen design
EASY MAINTENANCE
The compartmentalized cooling unit is extractable for easy maintenance.
HYGIENE & COOLING EFFICIENCY
The wide magnetic gaskets are removable for easy cleaning. The triple insulation area provides an effective seal, reducing escaping cold air for maximum efficiency.
ERGONOMIC DESIGN
PREMIER counters strike with ergonomic design features, such as anti-tilt shelves, drawers with pull-out stops, extra-long drawer telescopic rails, and full-length handles.
VAST VARIETY
With PREMIER counters you can choose the workplace that fits into your individual kitchen routine. Select from a wide counter portfolio with different combinations of worktops, doors, drawers, legs /castors/electric elevation, temperature ranges, and accessories.
MORE FEATURES:
Soft Closing Drawer (optional)
Different worktop options & insulation board
Increased body height of 750mm
Possibility to extend the height of castors by 50 mm with Castor Extension Kit (optional accessory)
Specifications
| Specification | Value |
|---|---|
| Item number | 213030012100 |
| Model name | Premier F 2 B DL DR L E |
| Extended spec sheets approved | 1 |
| Brand | Hoshizaki |
| Warranty period | 6 Years on Parts & Labour - based on country agreement |
| Country of origin | Turkey |
| Title | 2-Section Freezer Counter |
| Accessories included | 2 grey shelves per door section |
| Equipped with | Without worktop (with insulated board) for built-in under existing tabletop, 2 door sections each with 2 grey shelves |
| Width | 1310 mm |
| Width (packed) | 1340 mm |
| Depth | 680 mm |
| Depth (packed) | 710 mm |
| Height | 750 mm |
| Height (packed) | 1079 mm |
| Volume (packed) | 1.05 m³ |
| Energy consumption | 1410 kWh/year |
| Energy efficiency class | C |
| Energy efficiency class standard | ISO 22041-2019 |
| Energy Efficiency Index (EEI) | 40.26 EEI |
| Number of shelves | 4 |
| Number of shelves per section | 2 |
| Shelf size | 1/1 GN |
| Climate class | 5 (max. ambient 40°C w/ 40% RH) |
| Connection load | 425 W |
| Exterior | Stainless steel AISI 304 |
| Interior | Stainless steel AISI 304 |
| Gross weight | 92 kg |
| Insulation thickness | 60 mm |
| Insulation type | Polyurethane |
| Legs / Castors | H = 130-180 mm (L) |
| Net usable volume | 192 l |
| Net weight | 80 kg |
| Number of sections | 2 sections |
| Power supply | 230V, 50Hz |
| Sound level | 45 dB |
| Temperature range | -25/-5°C |
| Volume, gross | 301 l |
| Volume, net | 192 l |
| Worktop options | Without worktop B |
| Cooling system | Built-in cooling system |
| Configuration of sections | Models with door section |
| Refrigeration capacity | 376 |
| Optional Extras | Set of legs 125-200 mm Set of legs 130-180 mm Set of castors 125 mm Set of castors 150 mm Set of castors 200 mm Castor Extension Kit (extends height of castors by 50 mm) Stainless shelf, 325 x 530mm Grey shelf, 325 x 530mm Shelf supports, 2 of Door section Flat worktop Flat worktop with 50mm splashback Flat worktop with 100mm splashback |
| CO2 equivalent | 0.165 kg |
| GWP | 3 GWP |
| Refrigerant | 0.055 kg |
| Refrigerant type | R290 |
| Model | 12 |
| Pricelist headline label counters | FREEZER WITH INSULATION BOARD (TYPE B) |
| Pricelist notification (short) | Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks. |
| Pricelist notification (long) | Remote models are available |
| SKU | 213030012100 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| Shelf stainless, 325 x 530 mm | 760660010 |
| Set of castors 150 mm (2 x braked and 2 x unbreaked) | 760660011 |
| Set of castors 200 mm (2 x braked and 2 x unbreaked) | 760660012 |
| Set of castors 125 mm (2 x braked and 2 x unbreaked) | 760660022 |
| Set of legs 130-180 mm | 760660118 |
| Set of legs 125-200 mm | 760660119 |
| Castor Extension Kit (extends height of castors by 50 mm) | 760660453 |
| Door section | 760660482 |
| Shelf supports x 2 | 760660545 |
| Shelf grey 325 x 530 mm | 760660546 |
| Flat worktop PREMIER 270 | 760660580 |
| Flat worktop with 50mm splashback PREMIER 270 | 760660583 |
| Flat worktop with 100mm splashback PREMIER 270 | 760660584 |
| Set of legs 100-150 mm | 760660700 |
