M111-D203

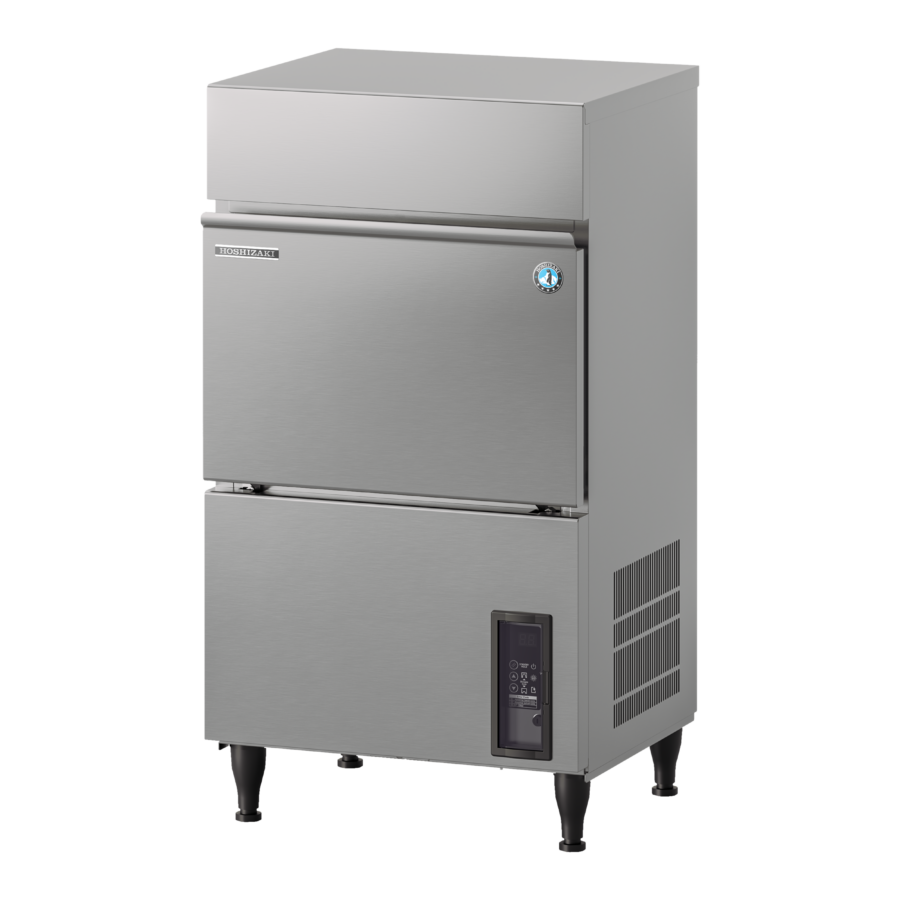

IM-45WPE-U-25 Cuber, Self Contained
This Hoshizaki IM-45WPE-U-25 is an UltraCUBE variant of a Cuber, Self Contained producing up to 47 kg of the world-famous Hoshizaki ice cubes (Small cubes – 25) per 24 hours. The dimensions of this model are mm without legs.
ENHANCING HYGIENE AND FOOD SAFETY WITH AN ADDITIONAL SANITIZATION MECHANISM.
The UltraCUBE includes all the features of the Cube model, along with added enhancements for optimized hygiene. Hoshizaki’s innovative UV cleaning mechanism uses UV-light flashes to inhibit harmful contamination of the water tank and standing water, ensuring even safer and cleaner ice.
Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.
Key Features
INCREASED HYGIENE & FOOD SAFETY
- NEW: UV Sanitization
- NEW: Scoop Holder-Kit (optional)
- The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.
INCREASED PERFORMANCE
- NEW: More efficient magnetic DC Pump Motor with variable speed
- Use of R290 natural refrigerant
INCREASED ICE QUALITY
- NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
- Closed Cell System, individual cube forming
INCREASED DURABILITY
- NEW: Automated Cleaning
- NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
- NEW: Magnetic DC Pump Motor with variable speed
- Highest-grade insulation material (foaming instead of polystyrene)
OPERATOR/MAINTENANCE CONVENIENCE
- NEW: Water circuit cleaning notification
- NEW: Condenser cleaning notification
- NEW: Control panel for easy adjustable dimple size
- NEW: Water tank & DC pump are easily removable
INCREASED ENERGY SAVING
- NEW: DC Pump Motor with variable speed
- NEW: Stand-by function
- Highest-grade insulation material (foaming instead of polystyrene)
- Use of R290 natural refrigerant
INCREASED WATER SAVING
- NEW: Magnetic DC Pump Motor with variable speed
- NEW: Improved water tank design to consume less water
Specifications
| Specification | Value |
|---|---|
| Item number | M111-D203 |
| Model name | IM-45WPE-U-25 Extended spec sheets approved 1 Ice maker type Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | UK Sub series IM UltraCUBE |
| Title | Cuber, Self Contained |
| Accessories included | Installation kit, Legs, Scoop Please observe This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 503 mm |
| Width (packed) | 635 mm |
| Depth | 456 mm |
| Depth (packed) | 520 mm |
| Height | 840 mm |
| Height (packed) | 1007 mm Volume (packed) 0.3325 m³ Dimensions legs for legs add 90-125 mm |
| Electric Consumption | 0.22 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C Functions Automated cleaning, UV-C sanitization |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 53 kg |
| Net weight | 45 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 0.44 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 18 kg |
| Cooling system | Water Cooled |
| Ice type | Small cubes - 25 Ice production 47 |
| Water consumption | Water cooled ice makers 0.26 |
| Optional Extras | 4HC-H water filtration, internal drain pump (Pump motor kit and bracket) |
| CO2 equivalent | 0.27 kg GWP 3 GWP |
| Refrigerant | 0.09 kg |
| Refrigerant type | R290 |
| SKU | M111-D203 |
Documentation
Accessories
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
